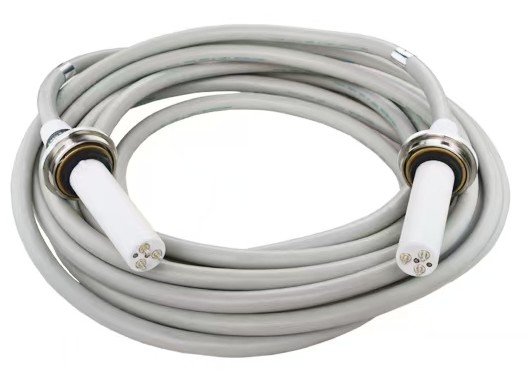

The X-ray tube high-voltage cable is a specialized high-voltage connecting line for X-ray equipment, used to connect the X-ray tube to the high-voltage generator and transmit high voltage and filament signals. The product features a three-core coaxial structure, offering good voltage resistance, insulation, and anti-interference performance, as well as flexibility and durability. It is widely used in medical DR, CT, dental X-ray machines, and industrial nondestructive testing equipment, ensuring stable and safe high-voltage transmission.
70kV high-voltage cable | |
Model | Type L3 |
Rated Voltage | 75kV |

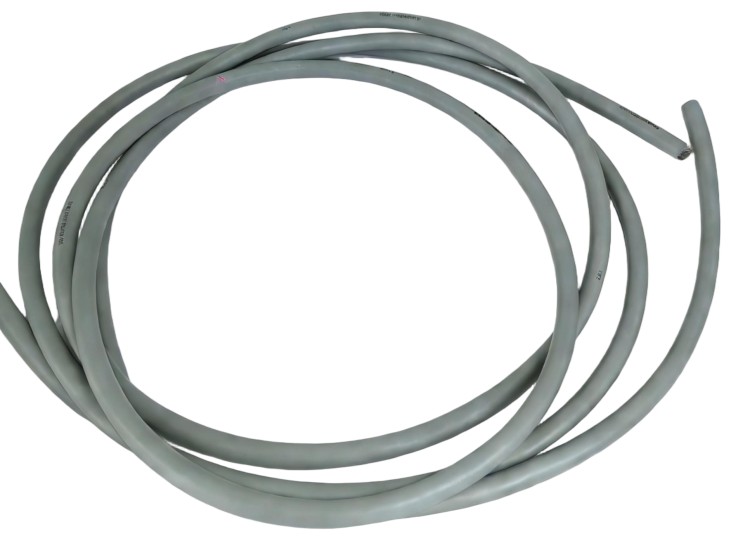

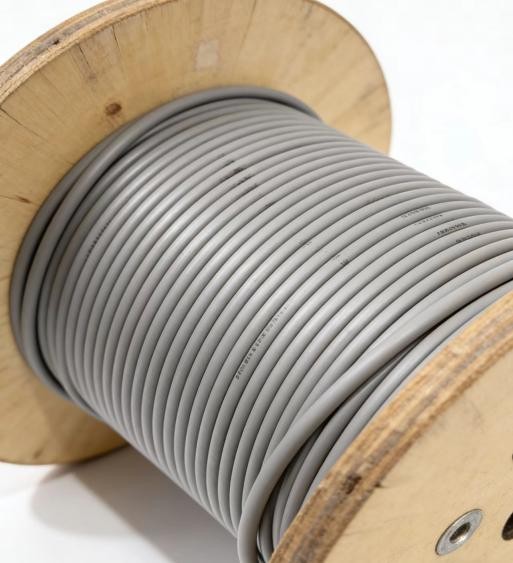

Appearance | Gray flexible sheath |
Purpose | Special Connecting Cable for X-ray Tube |
Application field | Medical imaging, industrial non-destructive testing |
70kV high-voltage cable | |
Rated Voltage | 75kVDC |
Routine Test Voltage (High Voltage Insulation) | 120 kVDC / 10 min |
Nominal outer diameter | 16.7mm ±0.5 mm |
Minimum bending radius | 33 mm (static installation) 66 mm (dynamic installation) |
Number of conductors | 3 |
1. Anti-interference and stability
Uses a shielded structure, ensuring stable signal transmission and clear imaging of the equipment.
2. Voltage resistance and safety
Excellent insulation performance, safe operation under high voltage conditions, and not easily broken down.
3. Flexible and easy to install
The cable is flexible, can be bent for wiring, easy to install, and convenient for construction.
4. Strong environmental adaptability
Suitable for a wide temperature range, applicable in medical, industrial flaw detection, and other scenarios.
5. Durable and long-lasting
Materials are aging-resistant and bend-resistant, ensuring stable long-term use and low failure rate.
1. Used for medical imaging equipment
Adapted for X-ray machines and DR equipment, connecting the X-ray tube and high-voltage generator.
2. Used for industrial nondestructive testing
Applied in industrial flaw detection equipment to ensure stable high-voltage transmission and imaging.
3. Used for various high-voltage radiation devices
Suitable for medical and industrial X-ray tube systems, transmitting high voltage and signals.
